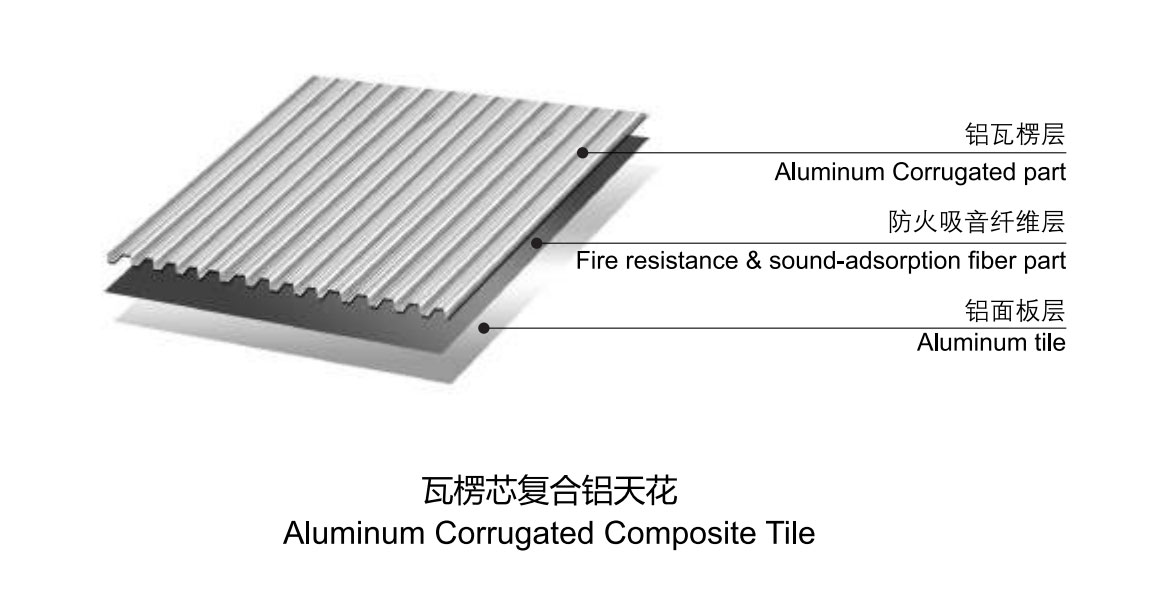

Aluminum corrugated panels for suspended ceilings can also customize the perforated sound-absorbing design to make the decorative effect unique while achieving sound-absorbing and noise-reducing effects.
Board width: 600mm/900mm/1000mm/1200mm
Board length: control according to applicable area wind pressure, building height and actual requirements
Panel: AA3003, thickness: 0.7/0.8mm, folding height: 30mm
Corrugated core: AA3003, thickness: 0.2mm, height: 6mm
Keel: customized special hook-up keel
Seam width: close seam
Product features of aluminum corrugated panels for suspended ceilings:
1. High cost-effective metal ceiling decoration materials
2. Compared with other metal ceilings (such as aluminum veneer), the weight is lighter and the strength is better
3. Excellent surface smoothness
4. Flat and large-size panel partitions bring more choices to interior design
5. The installation is extremely simple, and the design is detachable, which will not be deformed even if it is disassembled many times
6. Rich colors and decorative
7. Strong, flexible combination
8. Safety and environmental protection, can realize the reuse of materials
| Items | Specs and parameters |
|---|---|
| Total height | 30mm、35mm（Can be customized） |
| Aluminum surface | 0.7—1.0mm High-grade aluminum alloy plate |
| Aluminum core | Aluminum foil thickness：0.2mm； height：4mm、6mm、8mm |
| Back side | 0.5—1.0mm High-grade aluminum alloy plate（some not use the backplane） |
| Width | ≤2200mm |
| Length | Length can be customized according to customer needs |
